Chapter 4

The FCE broad gauge network

Rolling stock of the Bariloche line

Passenger stock
Whilst the railway remained isolated clearly the passenger and freight cars were likely to remain there. However, after the building of the Rio Negro bridge in 1936 there was much more interchange of vehicles with the rest of Argentina's broad gauge systems. This increased even more when the FC General Roca took over the line in 1948.

The earliest stock is listed in the 1912/3 Ministerio de Obras Publicas report (3). There is also a list in the 1926 report by Rodney W. Long for the US Department of Commerce (4). More detail is given in the appendices to the FCE working timetables. The table below combines information from 1912, 1924, 1934 and 1945.

Existencia de coches Patagones al Lago Nahuel Huapi

Clase
Class

Serie y numer-ación
Series & numbers

Total de cada serie
Total no. in series

Cantidad
Capacity

Año de fabric-ación
Year of constr-uction

Fabric-antes
Makers

Observaciones
Notes

Coche motor

3

1

1a - 8
2a - 40

1937

Ganz

Identical to those bought for use on other Patagonian lines and similar to others on FcE lines further north

Coche motor class CD

10-11

2

2a - 48

1937

Ganz

Power cars for 'Trens Bariloche'. 310hp. Wheel arrangement B1-2, ie. outer 3 axle bogie with first two axles driven and inner two axle undriven bogie. Eventually (1960s?) sent for use elsewhere on the Roca system and later on the Mitre network.

Coche motor class CT

20-1

2

1a - 16

1938

Ganz

Power cars for 'Trens Bariloche'. 310hp. Wheel arrangement B1-2, ie. outer 3 axle bogie with first two axles driven and inner two axle undriven bogie. With air conditioning. Eventually (1960s?) sent for use elsewhere on the Roca system and later on the Mitre network.

Coche motor class CA

1-2

2

1a - 28
2a - 40

1938

Ganz

These were the centre trailer cars coupled between one of each of classes CT & CD. Eventually (1960s?) sent for use elsewhere on the Roca system and later on the Mitre network.

Pull-man

O51

1

30 x 1st class

1935

Talleres Tafi Viejo

Converted 1943 in Comedor/Restaurant, see below.

1

??

3

64

1910

HH

New/Nuevos $oro 13,470 each. Reported in 1912 and 1924 reports but not identified by number. These cannot be identified in the 1934 and 1945 stiocklists.

1

P301

1

64

1910

HH

8 x compartments for 8
Transferred from Pto. Deseado by 1934.

1

P302

1

60

1910

HH

Transferred from Pto. Deseado by 1934.

2

S201-2

2

110

1910

HH

New/Nuevos $oro 10,006 each. Three recorded in 1912 and 1924, third one (S203) converted 1929 to Kitchen/restaurant C601.

2

??

2

Ex Andino
$oro 3,750 each. Two of these coaches are listed in 1912 and 1924 but neither can be identified in later stocklists.

Mixto

M351

1

32 1a
54 2a

1910

HH

New/Nuevos $oro 10,865 each. Three of these vehicles were reported in 1912 and 1924 but not identified by number. Only M351 can be identified in the 1934 and 1945 stocklists.

Mixto

M352

1

16 1a
74 2a

??

Lanc-aster

ex FC Andino. Transferred from Pto. Deseado by 1934 but gone by 1940.

Comedor

C600

1

40

1925

HH

Recorded in 1934 & 1940 lists but gone by 1945.

Comedor/Rest-aurant

C601

1

48

1929

Tall. Tafi Viejo

Ex coche S203, converted 1929 San Antonio works

Comedor-cocina Rest.-kitchen

C-K602

1

68

1935

Tall. Tafi Viejo

Twin artic. unit on 3 x 3 axled bogies?
With bar Americana for 6 seats

Comedor Rest.

C603

1

40

1943

Tall. A. Cord-oba

Ex coche O51, see above.

Dorm-itorios
Sleeping

D101-3

3

7 x 2 camas
7 x 2 beds

1910

HH

Converted to sleeping at San Antonio works in 1925
1 compartment with bath

Dorm-itorios
Sleeping

D104-7

4

10 x 2 camas
1 x 4 camas

1933-4

Tall. Tafi Viejo

Reserv-ado

R1

1

2 x 1 cama
1 x 2 camas

1934

Tall. Tafi Viejo

Reserv-ado

R500,3

2

2 x 1 cama

1890

Lanc-aster

R503 not in 1934 list, but appears in 1940 list.

Reserv-ado

R502

1

2 camas

1939? (rebuilt then?)

Lanc-aster

Ing. Jefe de Via y Obras
Civil Engineer's car
Not recorded in 1934 list for this line, but present in 1940. A Lancaster coach numbered R502 is preserved in Puerto Deseado. This presumably the same vahicle though it is not obvious when it was moved there.

Reserv-ado

R504

1

1 x 2 camas
2 x 1 cama

1910

HH

Not recorded in 1934 or 1940 lists for this line.

Servicio Staff

S501

1

6 camas

1890

Lanc-aster

Servicio pagador

Servicio Staff

-700

1

3 camas

-

Glouc-ester

Material rodante,
Not recorded in 1934 or 1940 lists for this line.

Furgones pasageros

401-2

2

4 camas (& post compart-ment in 1940)

1910

HH

New/Nuevos $oro 10,006 each. 34.0 tonnes gross. Recorded in 1912, 1924 & 1940 lists.

Furgones pasageros

403

1

6 camas

1890

Lanc-aster

Not recorded until 1934

Furgones pasageros

410-1

2

4 camas

1933-4

Tall. Tafi Viejo

Not recorded until 1934

Furgones de carga
2 axle

551-7

7

10 tonnes

1890

Dyle et Bacalan

Ex Andino $oro 3,500 each. Recorded in 1912 and 1924 reports. No. 551 destroyed by 1934

Furgones de carga
2 axle

558-9

2

10 tonnes

1898

Dyle et Bacalan

Converted from 800 series wagons. Only recorded in 1940.

Furgones de carga

566-9

4

20 tonnes

Glouc-ester

Converted from wagons 702, 722, 708, 718 respectively, after ’24 but before ’34.

Notes:
The Lancaster passenger coaches came from the FC Andino at $oro 5,250 each. In 1912 there were 2 1st class coaches. By 1924 there was one mixto and one staff service car. The 1934 list records mixto M352 transferred from Pto. Deseado, reservado R500, and servicio S501. By 1945 there were four Lancaster vehicles but none of them in line service; they were R500, 502 and 503 and S501.

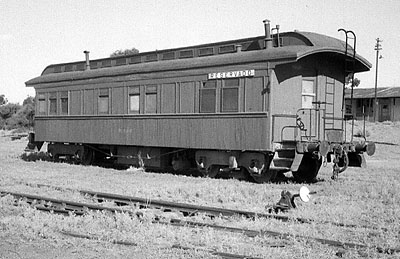

The photo below, taken at San Antonio in February 1972 (8), shows a coach - relegated to 'Reservado' or staff use. It is clearly an 1890 Lancaster-built car as cascaded from the FC Andino but the bogies are different from those on the two surviving Lancaster coaches at Puerto Deseado and Rawson.





Freight stock
Again, the earliest records are in the 1912/3 Ministerio de Obras Publicas report and the1926 Rodney W. Long report. The 1934 working timetable and the 1940 and ’45 appendix lists have also been consulted. The 1952 railway tariff book also provided a list of wagons on this line.

Type
Tipo

Nos.

Maker
Marca

Quantity

Cantidad

Axles

Ejes

Carga máxima
Capacity
Tonnes/toneladas

Notes
Observaciones

Plataforma

?? may have been series 1000 or 1100

Nesseldorf/Ringhoffer 1910

35

4

40

New/Nuevos
$oro 964.70 each. Reported in 1912 and in 1924 but by 1934 all converted to hacienda wagons (see below).

Plataforma 2400 series

2413, 2418 left in ’34.

Leeds Forge 1907

30

4

40

Ex Pto. de la Capital
$oro 1,500 each. Reported in 1912 and in 1924. By 1934 only two recorded, both ‘destruido’, though 3 converted to cubiertos and the other 25 to tanks (see below).
Surprisingly no. 2414 still listed in 1952 & 1955 tariff books.

Plataforma 2500 series

2500 to 2558

Dyle et Bacalan 1898

59, and 49 left by 1945

2

10

Ex Andino
$oro 500 each. 59 of these reported in 1924. By 1934 whole series only used for ballast and 7 recorded as destroyed. 52 recorded in 1940. Nos. 2500-58 still listed in 1952 tariff book.

Plataforma 400 series

400-44

Nicaise and Delcuve

45 recorded in 1924, 1934 & 1940.

2

10

Source unknown. Not reported in 1912, but had arrived by 1924. By 1934 only used for ballast.
Nos. 400-444 listed in 1952 tariff book.

Plataforma 7000 series

Orig. 7000-70. 7001-9, 7011-70

Famillereux 1925

Orig-inally 70. 69 in 1934. 49 out of 59 in service in 1940.

4

40

Presumably bought new in 1925. No. 7010 converted to tank wagon by ’34 see below.
Nos. 7000-70 listed in 1952 & 1955 tariff books. However, 20 of them converted to bordes altos at some point.

Tanques series 30

30-1, 3, 5, 40-4.

Nesseldorf/Ringhoffer 1910

18 in 1912,

4

37/38

New/Nuevos
$oro 1,848.80 each.
reduced to 16 in 1924, only 9 in 1934 of which only 3 in service (30, 33, & 41 listed in 1940).
Nos. 30-33 listed in 1952 & 1955 tariff books.

Tanques 2900 series

2961-2

Dyle et Bacalan 1898

11, only 2 left in 1934, both out of service

2

10

Ex Andino
$oro 500 each. Not reported in 1924 or thereafter.

Tanques series 2400

2400, 2-3, 5, 8-12, 14-15, 17, 19-20-21, 25-29.

Leeds Forge Co. 1907 ex plataformas see above

24

4

37/25 see note

Plataformas rebuilt with tanks. 8 with tanks from series 30 wagons (ie nos. 2400, 2, 5, 8, 10, 12, 19, 20), others with tanks from 75cm gauge wagons. 2400 listed in 1940 with lower capacity than 2403-2429. Nos. 2403-29 listed in 1952 & 1955 tariff books.

Tanques series 2500

2537

4/
2

40/
11.8

Only listed in 1952 & 1955 tariff books. Smaller capacity on two axles as given in the 1955 book.

Tanques series 2800

2861

4/
2

38/
8.5

Only listed in 1952 & 1955 tariff books. Smaller capacity on two axles as given in the 1955 book.

Tanques series 7000

7010

Famillereux 1925 ex plataforma see above

1

4

40

Plataforma rebuilt with a tank 'de madera' according to 1934 working timetable. Also listed in 1940.

Tanques series 4500

4500-16 & 4527-36

4500-9 built Talleres Tafí Viejo 1933, and others later. 4512-16 built by Talleres San Antonio?

10

4

38/40

4500-9 only, mentioned in 1934. Nos. 4500-16 & 27-36 listed in 1952 & 1955 tariff books, of which 4512-13 & 27-36 used for petroleum.

Cubiertos 600 series

600-14

Nesseldorf/Ringhoffer 1910

15

4

40

New/Nuevos $oro 1,329.70 each. Reported in 1912 and in 1924. All intact in 1934, no. 613 then in postal use. 8 out of surviving 15 in service in 1940. Nos. 600-14 listed in 1952 & 1955 tariff books.

Cubiertos 800 series

800-23

Dyle et Bacalan 1898

64

2

12

Ex Andino $oro 500 each. 24 still in use in 1924. By ’34 & '40 only 7, in departmental use, rest used as living vans or scrapped. In 1940 two reported rebuilt to furgon cargas. Surprisingly nos. 802-22 still listed in 1952 & 1955 tariff books.

Cubiertos 700 series

700-1, 3-7, 9-17, 19-21 in use in 1934

Gloucester

23

4

20

Ex Andino
$oro 700 each. Reported in 1912 and in 1924. By ’34 wagons 700, 5, 9, 12, & 20 scrapped and 719 in departmental use. 14 in use in 1940. Nos. 700-21 listed in 1952 & 1955 tariff books.

Cubiertos 900 series

900-39

Bonnefond

40

2

10

Reported first in 1924; by ’34 & '40 only 14 in use, rest as living vans, or scrapped. Surprisingly nos. 904-36 still listed in 1952 tariff book.

Cubiertos 2400 series

2404, 7, 22.

Leeds Forge Co. 1907

3

4

40

Converted from plataformas between ’24 and ’34. No. 2404 in 'auxiliary' use and 2422 in stores use. 3 listed in 1940. Nos. 2404-22 listed in 1952 & 1955 tariff books.

Cubiertos 3000 series

3001-15

Famillereux 1925

15?

4

40

New in 1925? No. 3001 recorded in 1934 as in postal service. 13 in use in 1940. Nos. 3001-16 listed in 1952 & 1955 tariff books.

Cubiertos 1500 series

1500-19

4

45

Only listed in 1952 & 1955 tariff books.

Cubiertos 80000 series

80000-49

4

45

Only listed in 1952 & 1955 tariff books.

Cubiertos ventilados

28900-70

4

45

Only listed in1955 tariff book.

Bordes altos 6000 series

6000-19

Converted Tall. San Antonio, from 7000 series plataformas

20

4

40

Only listed in 1940 appendix & in 1952 & 1955 tariff books. Ex plataformas nos. 7000, 20-35, 67-9?

Para auto-moviles 500 series

501-2

Talleres San Antonio 1939 (built or converted?)

4

40

Only listed in 1940 appendix &1952 & 1955 tariff books.

Hacienda 1 piso (single deck for cattle)

1000-19

Harlan Hollingsworth (ex plataformas built 1910 see above)

20

4

40

Converted in talleres San Antonio 1924/9. Nos. 1000-19 listed in 1952 & 1955 tariff books, as 'convertibles' in the latter. Similarly described in 1940.

Hacienda 2 piso (double deck for sheep)

1100-39

Harlan Hollingsworth (ex plataformas built 1910 see above)

40?

4

40

Converted in talleres San Antonio 1924/9. Nos. 1100-39 listed in 1952 tariff book as 'dos pisos no convertibles'. 1940 appendix &1955 tariff book lump this batch and the next together as one.

Hacienda 2 piso (double deck for sheep)

1140-53 (or 54?)

Harlan Hollingsworth (ex plataformas built 1910 see above)

14

4

40

Converted in talleres San Antonio 1933. Nos. 1140-54 listed in 1952 tariff book as 'dos pisos no convertibles'. 1940 appendix &1955 tariff book lump this batch and the previous together as one.

Hacienda 2 piso (double deck for sheep)

1200-24

4

40

Only listed in 1952 & 1955 tariff books. The latter reference was annotated 'convertibles' by hand.

Hacienda 2 piso (double deck for sheep)

81000-70

4

45

Only listed in 1952 & 1955 tariff books, as 'dos pisos convertibles'.

Servicio

Gloucester

1

4

40

Reported only in 1924

Crane/Guinche

London (sic)

1

3

15

$oro 4,000. Not reported in 1924 though almost certainly present



Wagon diagrams
A number of FCE wagon diagrams are available on an appendix page.

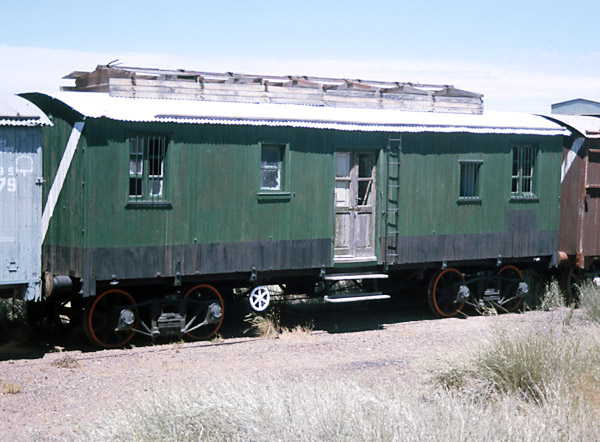

A mixed collection of departmental stock lies at San Antonio works in December 2000. Several of the bogie vans have been converted into living vans for PW staff.



SA2000livingvan



Oddments

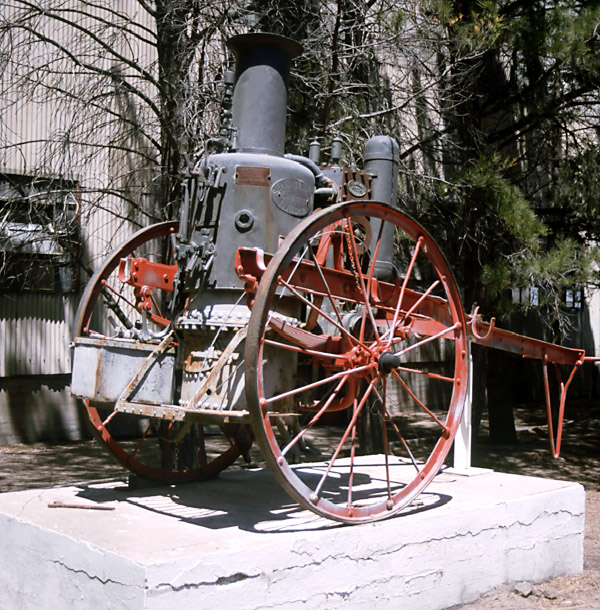

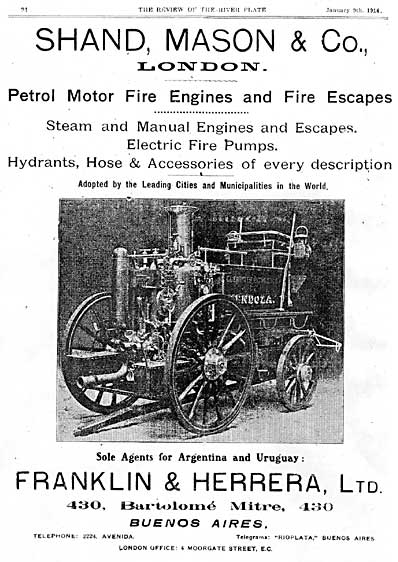

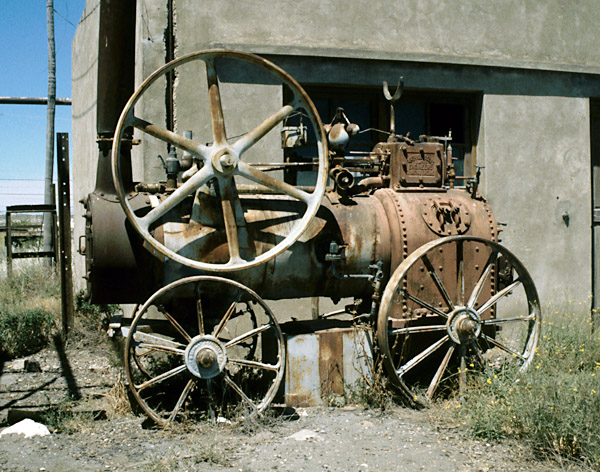

Railways always have unusual vehicles around. Cranes, permanent-way trollies and the like.

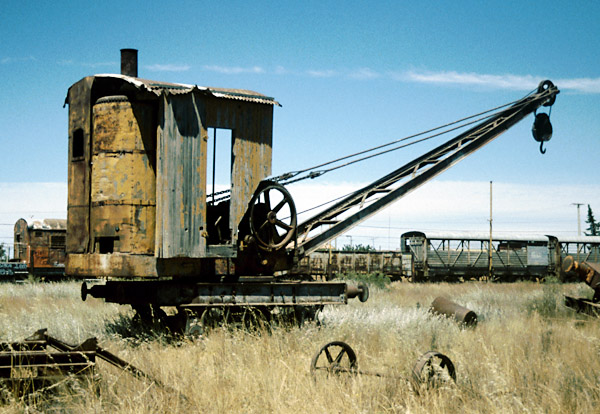

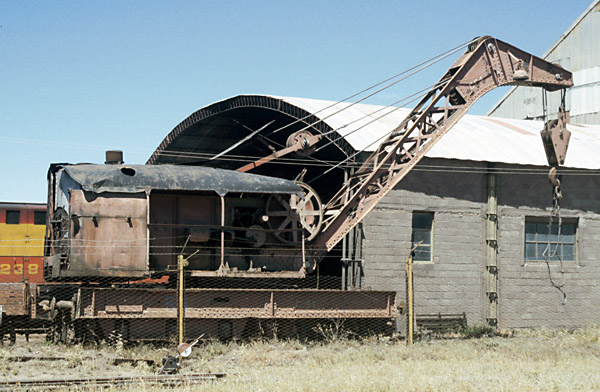

These two steam cranes, a large breakdown crane and a smaller machine, are lying around at San Antonio works. The former has been narrowed down to one of three batches by either H. Wilson of Birkenhead or Cowans Sheldon of Carlisle for the BAGS or the BAPR. Apparently the designs of these two manufacturers were more than coincidentally similar in the early years of the 20th century! (6) The latter may be the 15 tonne example recorded in 1912 and is probably by Grafton of Bedford.



SA2000bigcrane



SA2000Graftoncrane



Also in the works are a Hornsby portable engine from Grantham in England (No. 7075), once used to provide power in the workshops, and a Shand Mason hand-pulled steam fire engine. The latter is preserved on a plinth within the perimeter fence.



SA2000portable



SA2000fireengine



ShandMasonAd



References:
1 Railways of South America: Part I: Argentina. (William Rodney Long (& George S. Brady?), U.S. Bureau of Foreign and Domestic Commerce - Trade Promotion Series No. 32, U.S. Government Printing Office, Washington D.C. 1926.
2 Railways of Argentina (List of all known locos). Reg Carter. Duplicated, spiral bound. 46 Mill St., Kingston upon Thames, Surrey, KT1 2RF. UK.
2A El 'big bus', web page, author unknown.
3 1912 report
4 Railways of South America: Part I: Argentina. (William Rodney Long (& George S. Brady?), U.S. Bureau of Foreign and Domestic Commerce - Trade Promotion Series No. 32, U.S. Government Printing Office, Washington D.C. 1926.
5 Libro Nro. 1 - Clasificador y Tarifas Basicas uniformes Published by the Secretaria de Transportes de la Nacion - Ferrocarriles Nacionales February 1st. 1949, second update June 1st 1952. Another update was published in 1955.
6 Chris Capewell, who is a specialist in rail cranes, has written with his provisional suggestions: The larger crane, it is surmised, might be from one of three orders - from H. Wilson of Birkenhead, 30ton capacity for BAPR in 1910-2, or 35ton capacity for BAGS around 1912, or from Cowans Sheldon 40 ton capacity for BAGS, nos 4464-8 in 1925. All of these were mounted on 10 wheeled chassis but there were differences in the number of engines for raising and slewing.
7 The recent photos of Tren Patagonico diesel locos were very kindly provided by Robert Humm.
8 Marcelo Arcas has kindly provided the black and white photos of diesel locos and a coach taken in 1972. Marcelo runs the Rumbo al Sud internet magazine devoted to the railways south of Buenos Aires and particularly the FCS and its successor the FC General Roca.
9 Web-pages on the subject of the Ganz diesel railcars and multiple units are available at: <http://www.geocities.com/matrodante/GPguerra.htm> and <http://www.geocities.com/juanca010/ganz22.htm>. Link currently (January 2011) unavailable
10 Photo by courtesy of Señor Diego de Bunder of Puerto Madryn, whose grandfather's house was adjacent to the photo location.
11 Photos reproduced by kind permission of the Fundación Museo Ferroviario in Buenos Aires.



22-11-11



RETURN
to home page

RETURN
to top of page

NEXT PAGE
From Comodoro Rivadavia to Colonia Sarmiento

NEXT CHAPTER
the Chilean broad gauge

Home page Central of Chubut FCS to Neuquén FCE broad gauge EFE broad gauge Chiloe Island FCE 75cm gauge Estancia railways Coal  railways Ushuaia old & new The South Atlantic Salt railways Industrial lines Resources
